Planning a safer bathroom in Cupertino

In Cupertino the Building Division handles permits through Accela Citizen Access, the city posts a senior resources page, and the Fairgrove neighborhood holds 220 Eichler homes. Each affects how you plan a safer bathroom.

Good design cuts the effort out of daily routines. That means a shower you can walk or roll into, a place to sit, bars where your hands naturally land, and a faucet and valve you can work with one hand. The full aging-in-place bathroom guide lists the measurements.

If you may need a walker or wheelchair later, plan clear floor space now. A 60-inch turning circle is the ADA reference size. It is a guideline for homes, not a requirement. Even a smaller room can often gain room by swapping a tub for a shower.

How a curbless shower is built, step by step

Before we design a curbless shower in Cupertino, we look at what is under the bathroom floor: a concrete slab or a wood-framed floor. That decides how the shower area is lowered. Press Play to watch each step, or tap one. Switch between a concrete slab and a wood-framed floor.

Cross-section of a curbless shower being built Six steps: the old shower with a curb, recessing the floor, a linear drain and sloped mortar bed, a bonded waterproof membrane with a flood test, tile flush with the bathroom floor, and finishing with glass, a handheld shower and grab bars on solid blocking. wall BATHROOM SHOWER Slab saw-cut and loweredcheck first for post-tension cables floor joists Subfloor dropped between joistsframing lowered or sistered, as engineered curb a step to trip on slopes to drain: 1/8 to 1/2 in per ft linear drain sloped mortar bed (or foam tray) bonded waterproof membrane up the walls and past the shower flood test: 2 in of water, 15 min or more temporary dam at the open entry flush at the entry:no curb, no step grab bar on solid blocking slide-bar handheld fixed glass panel Roll or walkstraight in

Illustration by Axiom Renovation, not to scale. Shower floor slope and flood test from the California Plumbing Code (sections 408.6 and 408.8). Every floor is different; framing changes are confirmed by a structural engineer when needed.

Permits and the Cupertino Building Division

The city’s Building Division FAQ says building permits are required for remodeling and plumbing permits for installing or replacing plumbing fixtures. Electrical work such as new outlets or lighting needs an electrical permit. Finish work like tile, cabinets and countertops in a single-family home is listed as exempt, provided it does not touch an easement, drain or setback.

You can view, manage and pay for permits in the Accela Citizen Access portal, and electronic plan submittal is required. The Building Counter is at City Hall, 10300 Torre Avenue. The city also cites smoke alarms in each sleeping room and carbon monoxide alarms under the California Residential Code, so expect the inspector to look at them if your permit is open. If you are unsure whether your scope is exempt, the FAQ says to ask permit center staff.

Recent Axiom walk-in showers

Walk-in shower with built-in bench, slide-bar handheld and frameless glass
Walk-in shower with built-in bench, slide-bar handheld and frameless glass
ADU walk-in shower with linear drain and slide-bar handheld, San Jose
ADU walk-in shower with linear drain and slide-bar handheld, San Jose
Walk-in shower with linear drain next to a double vanity, Fremont
Walk-in shower with linear drain next to a double vanity, Fremont

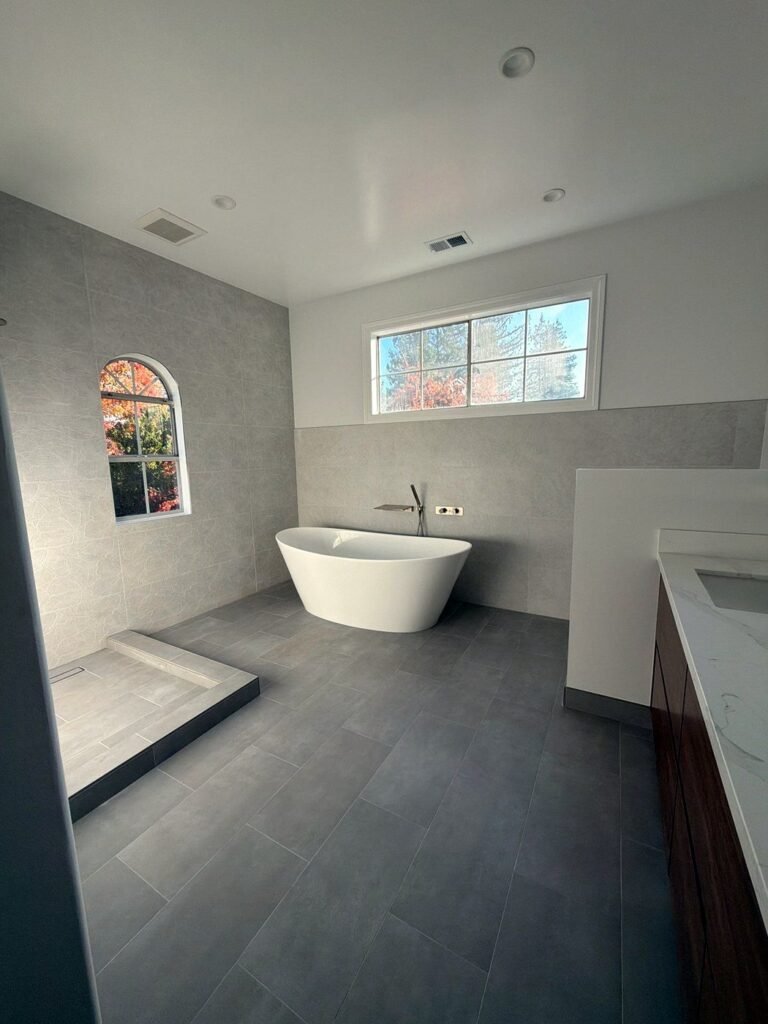

Primary bathroom with open walk-in shower and freestanding tub, Los Gatos
Primary bathroom with open walk-in shower and freestanding tub, Los Gatos

Bathrooms recently built by Axiom Renovation: walk-in showers with low curbs or open entries, linear drains, handheld showers and a built-in bench.

Fairgrove Eichlers and other Cupertino homes

The city’s Eichler Design Handbook for Fairgrove describes 220 Eichler homes built in the early 1960s, with slab foundations and radiant-heat floors. In those homes a curbless shower has to work around the slab, and any cutting should follow a pipe scan.

Homes outside that tract vary. Where the house has a raised floor, a shower floor can be recessed between joists, which is the usual route to a flush entry. We confirm the framing before we promise a design.

Senior resources in and around Cupertino

The city keeps a Resources for Seniors page. It lists Sourcewise, the county Department of Aging and Adult Services and Rebuilding Together, and notes the city does not oversee them. Check each agency for current age, income and residency rules.

For referrals, call Sourcewise at 408-350-3200 or Santa Clara County Aging and Adult Services at 408-755-7600.

Reference dimensions: shower seat, grab bars and toilet

These two drawings put the most-asked numbers in one place. They come from the 2010 ADA Standards, which homes are not required to follow but which give a tested starting point. We fine-tune heights to the people who live in the house.

shower floor fold-down seat15–16 in deep grab bar (not above the seat) lever control, above the bar,within 27 in of the seat wall handheld on slide bar, 59 in+ hose 33–36 in to top of bar 17–19 in 48 in max 1½ in space behind bar · 1¼–2 in diameter holds 250 lb · screwed into solid blocking
Back wall of a roll-in showerA fold-down seat on the side wall, its top 17 to 19 in above the floor and 15 to 16 in deep. The grab bar runs along the back wall, not above the seat, with its top 33 to 36 in high. Controls sit above the bar, no higher than 48 in and within 27 in of the seat wall. A handheld shower with at least a 59 in hose works seated or standing.
rear wall side wall centerline 16–18 in 12 in max side bar 42 in min rear bar 36 in min 12 in one side of centerline, 24 in on the other side bar reaches54 in from rear wall Seat height 17–19 in (“comfort height”) Bars mounted 33–36 in high flush lever on the open side keep the open side clear for a walker or a transfer
Toilet area, seen from aboveToilet centered 16 to 18 in from the side wall, seat 17 to 19 in high. A side-wall bar at least 42 in long starts no more than 12 in from the back wall. A rear bar at least 36 in long sits 12 in to one side of the toilet's centerline and 24 in to the other.

Reference dimensions from the 2010 ADA Standards for Accessible Design (sections 604, 608.3, 608.5, 608.6, 609 and 610). They are required in public buildings, not in private homes, where they serve as a proven guide. Hand-shower hose length from section 608.6. We adjust heights to the people who will use the bathroom, ideally with input from an occupational therapist. Drawings by Axiom Renovation, not to scale.

Work with Axiom in Cupertino

Bring your questions about the room and the permit. We will walk it, measure it and explain your options in plain terms.

Axiom Renovation designs, permits and builds the work. Call 408-702-2022, Monday to Friday, 9 am to 5 pm, or use the contact page.

Process

Our Bathroom Remodeling Process

Step 1

Initial Consultation

We begin with a thorough initial consultation to understand your needs, assess your space, and discuss your vision, budget, and timeline.

Step 2

Planning and Design

At Axiom Renovation, we understand that the planning and design phase of a bathroom remodel is crucial to its success. Our dedicated project managers will work closely with you to understand your goals, design ideas and budget for the project.

Step 3

Material Selection

We guide you through selecting high-quality materials that fit your design and budget, ensuring durability and aesthetic appeal.

Step 4

Demolition and Preparation

Careful demolition and preparation work are performed to ready the space for construction, minimizing disruptions and ensuring a clean work environment.

Step 5

Construction and Installation

Our skilled craftsmen handle the construction phase, including obtaining permits, scheduling appointments, and the actual construction and installation with precision, building the new space according to the approved design.

Step 6

Electrical and Plumbing Work

Licensed professionals conduct all electrical and plumbing work, ensuring everything is up to code and seamlessly integrated into the new bathroom.

Step 7

Painting and Finishing

We pay close attention to detail during the painting and finishing stage, ensuring all surfaces are properly prepared and beautifully finished.

Step 8

Fixture and Appliance Installation

We expertly install all fixtures and appliances, ensuring they function correctly and fit perfectly with the overall design.

Step 9

Final Touches and Clean-Up

Final touches are added, and a thorough clean-up is performed, leaving your new space pristine and ready for use.

Step 10

Final Walkthrough and Client Satisfaction

We conduct a final walkthrough with you to ensure every detail meets your expectations and address any remaining concerns, ensuring your complete satisfaction.

Cupertino Aging-in-Place Bathroom FAQ

Does a Cupertino bathroom remodel need a permit?

Generally yes. The city says remodeling needs a building permit and fixture replacement needs a plumbing permit. Tile, cabinet and countertop finish work is listed as exempt for single-family homes.

Can I get a curbless shower in a Fairgrove Eichler?

Often, after the slab is scanned for heating pipes. The design then works within what the floor allows.

Are grab bars safe in tile?

Yes, when they are fastened to blocking or studs. Tile alone will not hold a bar.

How long will it take?

Scope and review time decide it. We share a timeline after the site visit.

Where can Cupertino seniors find help?

Start with the city’s Resources for Seniors page, then Sourcewise, the county Aging and Adult Services and Rebuilding Together.

Who remodels aging-in-place bathrooms in Cupertino?

Axiom Renovation designs, permits and builds safer bathrooms in Cupertino, from grab bars and curbless showers to full remodels. Call 408-702-2022, Monday to Friday, 9 am to 5 pm.

Sources: City of Cupertino Building Division FAQ; Eichler Design Handbook: Fairgrove; City of Cupertino Resources for Seniors; U.S. Access Board ADA Standards; California Plumbing Code 408.6; Sourcewise; Santa Clara County Department of Aging and Adult Services; Rebuilding Together Silicon Valley. This page is general information, not medical, legal or tax advice.
